Wine grape-Pinot noir - crop suitability and yield maps
Description
Suitability is based on consideration of multiple suitability criteria, and expressed as a score from 0 (totally unsuitable) to 1 (perfectly suited with no limitations with respect to any criteria). Potential yield was estimated as a theoretical maximum (based on the published literature) weighted by suitability scores for suitability criteria directly related to productivity, and is an estimate of production when climate and land limitations are not mitigated.
Date: May 2023
Owner: MPI
Contact: Kumar Vetharaniam, Plant and Food Research
Link to report / paper
Our Environment
You can view the data in this dataset on a map-based web app here: Wine Grape Pinot Noir Suitability Score

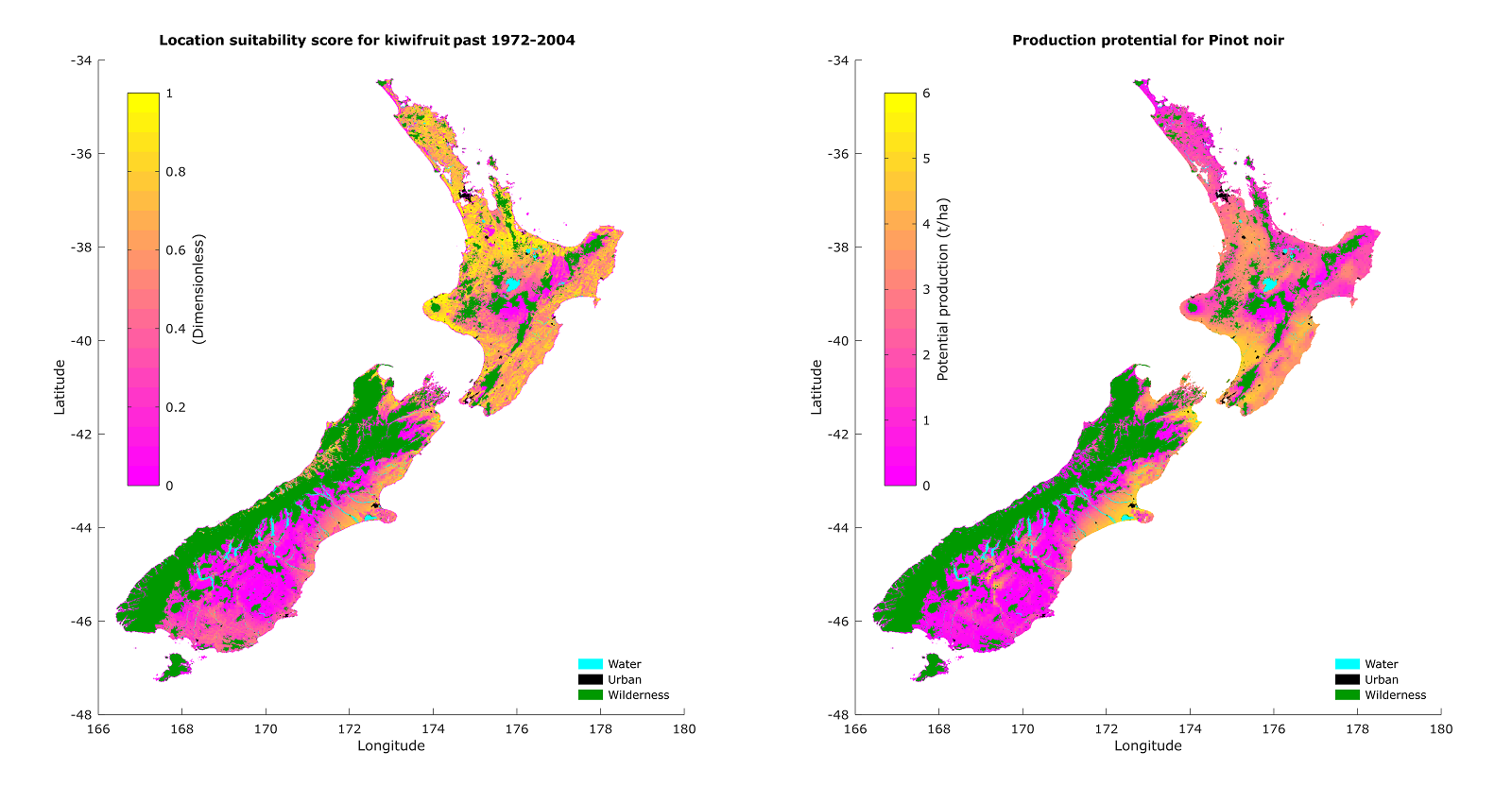

Preview Image
Dataset attributes
| Spatial extent | New Zealand |
|---|---|
| Spatial resolution | NIWA Virtual Climate Station Network 5km climate grid
S-map / FSL sampled on a 1 by 1 km grid |
| Temporal extent | Suitability scores are an 11 year normal production (2006-2011) Production is derived from the suitability maps and from available published production years which do not necessarily coincide with the suitability years |
| Temporal resolution | 11 year normal |
| Evaluation method (Validation) | Expert calibrated. The information was discussed with industry groups. |
| Evaluation result (Numeric) | N/A |
| Evaluation result (Categorical) | N/A |
| Uncertainty method | Expert assessment of suitability score maps was carried out. Maps assume irrigation is provided when required and so an assessment of irrigation requirements for locations of interest should be carried out. Production is highly dependent on management factors and how well limitations are mitigated, and thus potential production maps should be taken as indicative. |
| Uncertainty data format (Numeric) | N/A |
| Uncertainty data format (Categorical) |
Methodology
Suitability criteria are related to
i) risk of damage to canes and vines from extreme cold,
ii) sufficiency of warmth during the growing season (growing degree days),
iii) risk of frost damage to flowers and fruit,
iv) sufficiency of winter chill for flowering,
v) soil drainage,
vi) potential rooting depth,
vii) land use capability class,
viii) slope of land.
It was assumed that irrigation would be used when required, and thus rainfall was not considered as a criterion.
Suitability scores for climate-related criteria were calculated separately for each year and averaged to get a yearly climate score using weighted geometric means, with weights reflecting the relative importance of criteria. Yearly climate scores were averaged for the period 2006 to 2016 using arithmetic means to get an overall climate score. Suitability scores for land-related criteria were calculated separately and averaged using weighted geometric means to get an overall land suitability score. Climate and land suitability scores were averaged by taking their weighted geometric mean to obtain an overall location suitability score.
Suitability maps for individual criteria as well as climate suitability, land suitability and location suitability were "ground truthed" by horticultural experts.
Factsheet: Climate change impacts on on Pinot noir
Main report: Modelling the effect of climate change on land suitability for growing perennial crops
Fitness for purpose / limitations
This table indicates whether the dataset is suitable for different types of questions at different scales.
Note: Users should carefully consider their purpose as this dataset may not be suitable.
| Operational | Absolute | Relative | Screening/scoping | |
|---|---|---|---|---|
| Block/farm | No | No | Maybe | Maybe |
| Multi-farms(5+) | No | No | Yes | Yes |
| Catchment | No | No | Yes | Yes |
| National/regional | No | No | Yes | Yes | Caveat(s) | Does not include micro climate. |
Data and Resources
-
Wine grape-Pinot noir suitability map for NZTIF
License: CC BY 4.0 Date: May 2023 Version: v2 Attribute to: MPI...
-
Wine grape-Pinot noir potential yield map for New ZealandTIF
License: CC BY 4.0 Date: May 2023 Version: v2 Attribute to: MPI...
-
Wine grape-Pinot noir - Crop suitability & Yield maps (2023 v2)_PREVIEW.pngPNG
License: CC BY 4.0 Description This is the data preview image for the...
